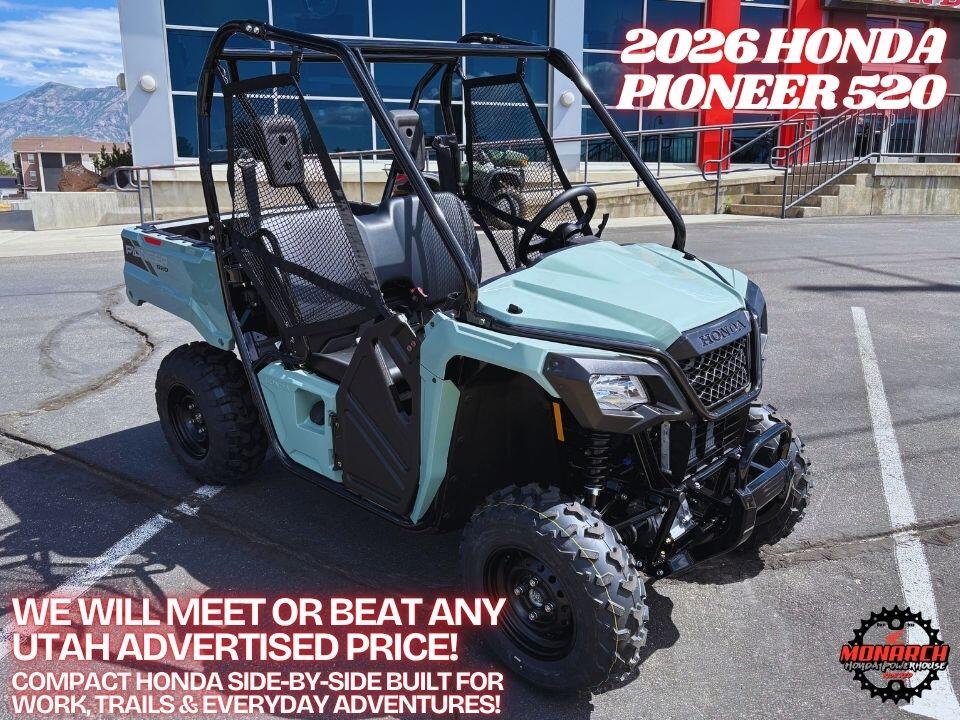

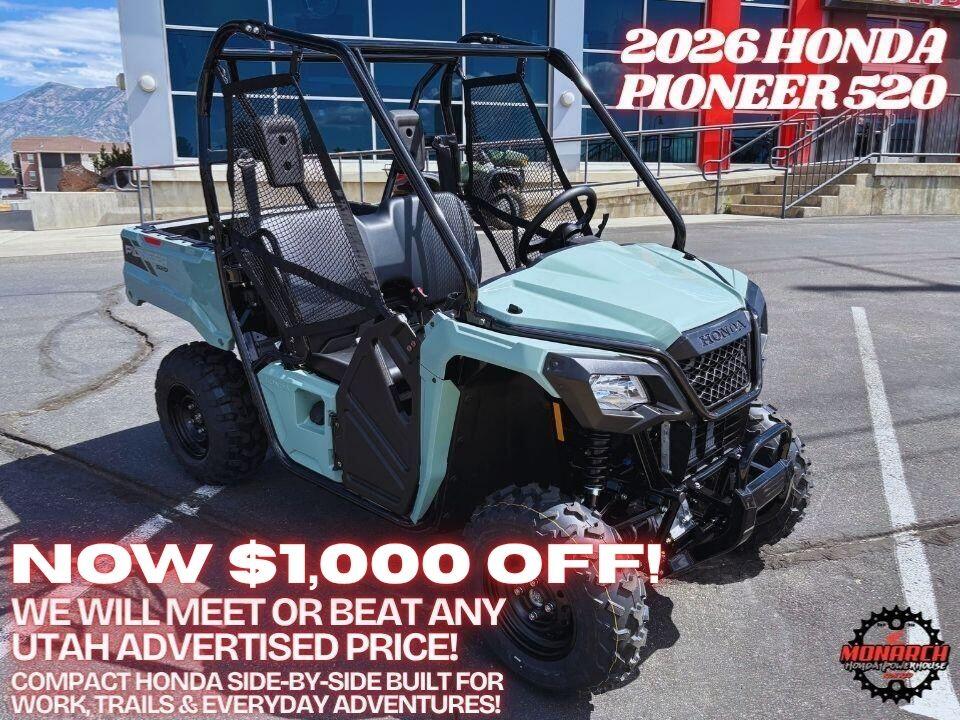

When you need a side-by-side that can handle hard work while still being easy to maneuver, the 2026 Honda Pioneer 520 is ready for the challenge. Built with Honda’s legendary reputation for durability and dependability, the Pioneer 520 delivers impressive capability in a compact 50-inch-wide package that is perfect for tight trails, property maintenance, hunting, farming, and everyday adventures.

Powered by a reliable 518cc liquid-cooled single-cylinder four-stroke engine, the Pioneer 520 provides strong low-end torque and smooth performance whether you’re hauling gear, navigating rough terrain, or tackling jobs around your property. Honda’s five-speed automatic transmission with AT/MT modes provides easy operation when you want it and manual control when you need it.

The Pioneer 520 is designed to go wherever the job or adventure takes you. Its compact 50-inch width allows it to access narrower trails and makes storage easier, while Honda’s selectable 2WD and 4WD system with a front locking differential helps you adapt to changing terrain and conditions. Independent front and rear suspension delivers a smoother, more controlled ride over uneven ground, helping you stay comfortable during long days of work or recreation.

Need to put it to work? The Pioneer 520 is built with capability in mind. A durable tilt/dump cargo bed provides excellent hauling versatility, while the heavy-duty receiver hitch allows you to tow equipment, trailers, and supplies with confidence. Whether you’re maintaining your property, hauling tools, checking fences, or exploring the outdoors, the Pioneer 520 is ready to help you get more done.

For 2026, the Honda Pioneer 520 continues to deliver the perfect balance of compact maneuverability and impressive performance. With convenient storage solutions, a comfortable cab layout, automotive-style three-point seat belts, integrated handholds, and Honda’s focus on rider confidence, this side-by-side is built to handle whatever your day demands.

The Pioneer 520 is the ideal choice for riders who want Honda reliability in a compact package. Whether you’re working around the farm, navigating trails, or taking on weekend adventures, the Pioneer 520 provides the durability, versatility, and capability you expect from Honda.

Backed by Honda’s legendary commitment to quality, the 2026 Honda Pioneer 520 SXS520M2T includes a 12-month transferable, limited factory warranty, giving you added confidence and peace of mind from the moment you take ownership.

Visit Monarch Honda in Orem, Utah and experience the 2026 Honda Pioneer 520 — a compact side-by-side with serious capability, proven Honda reliability, and the versatility you need for work, recreation, and everything in between.

Specifications

Engine

add remove
- Engine Type:

  Single-Cylinder
- Engine:

  Standard
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  4
- Valves Per Cylinder:

  4
- Valve Configuration:

  OHV
- Bore (mm):

  96
- Bore (in):

  3.78
- Stroke (mm):

  71.5
- Stroke (in):

  2.81
- Displacement (cc):

  518
- Displacement (ci):

  31.6
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Regular
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Fuel Injector Size (mm):

  36
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Snorkel Air Intake:

  Not Available
- Engine Block Heater:

  Not Available
- Speed Governor:

  No
- Other Engine:

  Not Available
- Compression Ratio:

  9.5:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Manual / Automatic Clutch
- Number Of Speeds:

  5
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Primary Drive (Front Wheel):

  Shaft
- Reverse:

  Yes
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Not Available
DRIVE LINE

add remove
- Driveline:

  Standard
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  2
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Not Available
- Differential Lock:

  Standard
- Differential Lock Location:

  Rear
- Driveline Brand:

  TraxLok™
- Other Drive Line:

  Not Available
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (mm):

  2667
- Width (in):

  50
- Width (mm):

  1270
- Height (in):

  71.2
- Height (mm):

  1808.5
- Wheelbase (in):

  73
- Wheelbase (mm):

  1854.2
- Turning Radius (ft):

  12.8
- Ground Clearance (in):

  8.5
- Ground Clearance (mm):

  215.9
- Weight:

  Standard
- Towing Capacity (lbs):

  1000
- Towing Capacity (kgs):

  453.6
- Capacities:

  Standard
- Fuel Capacity (gal):

  4.1
- Fuel Capacity (l):

  15.5
- Fuel Capacity Reserve (gal):

  1.1
- Fuel Capacity Reserve (l):

  4.2
- Performance:

  Standard
- Wet Weight (lbs):

  1060
- Wet Weight (kg):

  481
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Type:

  Independent Double Wishbone
- Front Travel (in):

  5.8
- Front Travel (mm):

  147.3
- Rear Suspension:

  Standard
- Rear Suspension Type:

  Independent Double Wishbone
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  5.9
- Rear Travel (mm):

  149.9
- Number Rear Shock Absorbers:

  2
- Rear Stabilizer Bar:

  Yes
- Air Adjustable:

  No
- Center Suspension:

  Not Available
- Front Adjustable Fork Pre-Load:

  No
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Other Suspension:

  Not Available
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Steel
- Front Tire Diameter (in):

  24
- Rear Tire Diameter (in):

  24
- Wheel Weights:

  Not Available
- Tires:

  Standard
- Front Tire Width:

  8
- Front Wheel Diameter:

  12
- Rear Tire Width:

  10
- Rear Wheel Diameter:

  12
- Front Tire (Full Spec):

  Maxxis® 24 x 8-12
- Rear Tire (Full Spec):

  Maxxis® 24 x 10-12
- Tire Chains:

  Not Available
- Spare Tire:

  Not Available
- Tire Brand:

  Maxxis®
- Other Wheels & Tires:

  Not Available
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  7.9
- Front Brake Diameter (mm):

  200
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  6.7
- Rear Brake Diameter (mm):

  170
- Anti-Lock Brakes:

  Not Available
- Parking Brake:

  Standard
- Engine Braking:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Other Brakes:

  Not Available
