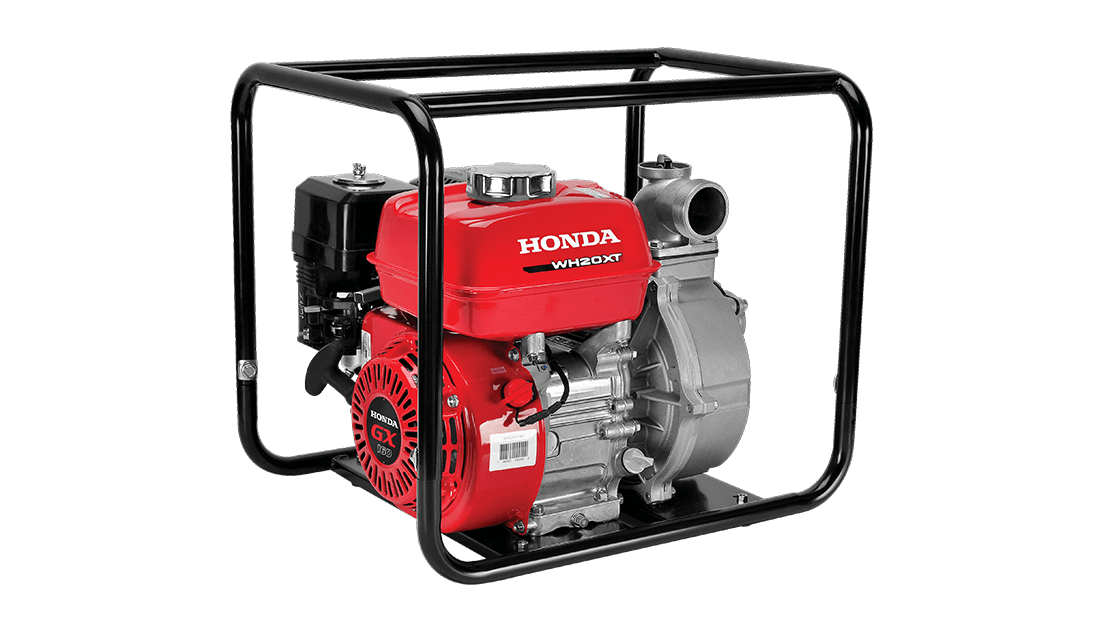

WH20

WH20

Description

FEATURES

  • High pressure 2" pump
  • Easy starting Honda OHV commercial engine
  • 119 gal./min capacity
  • 64 psi max.
  • Cast iron volute and impeller


High pressure - ideal for sprinklers or nozzles

With a maximum pressure of 64 psi, the WH20 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engine

The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

119 gal./min capacity

Cast iron volute and impeller

The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Heavy duty full frame protection

Protects the pump, while offering a convenient tie down location for transport.

Lightweight aluminum case

3 year residential/commercial warranty

You can rest easy, knowing your pump is covered from top to bottom for 3 full years.

Specifications

  • Specs
    add remove
    • Engine
      GX160
    • Displacement
      163cc
    • Bore and stroke
      2.7" x 1.8"
    • Compression Ratio
      9.0:1
    • Oil Alert
      N/A
    • Pump type
      High Pressure, Centrifugal, Self-priming
    • Volute
      Rigid Mounted Cast Iron
    • Impeller
      Cast Iron
    • Mechanical Seal (Pump case / impeller)
      Carbon/Ceramic
    • Priming time
      80 sec. at 16.4 ft.
    • Drive system
      Direct
    • Discharge capacity
      119 gals./min.
    • Suction port diameter
      2" NPT
    • Discharge port diameter
      2" NPT
    • Total head lift
      148 ft.
    • Suction head lift
      26 ft.
    • Maximum pressure
      64 psi
    • Solids handling
      N/A
    • Dimensions (LxWxH)
      20.5" x 15.7" x 18.1"
    • Dry weight
      60 lb.
    • Fuel Capacity
      0.82 gal
    • Run Time @ Max Discharge
      1.5 hr
    • Strainer Part #
      78325-YB7-702
    • Residential Warranty
      3 years
    • Commercial Warranty
      3 years
