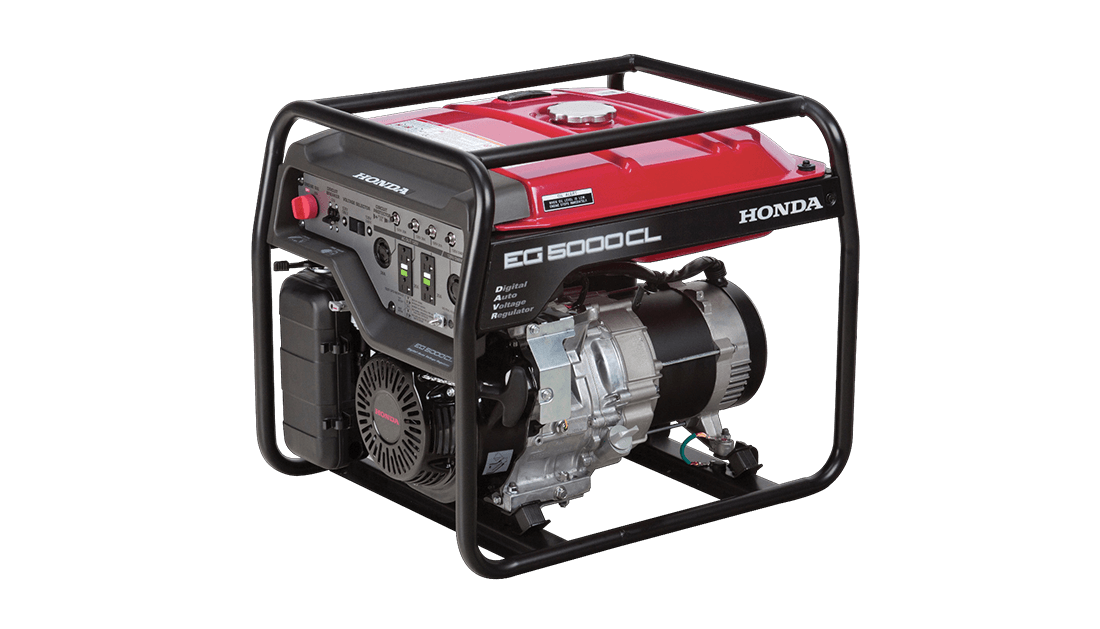

EG5000

EG5000

Description

FEATURES

  • 5000 watts, 120/240V
  • Economic, portable power
  • Honda commercial OHV engine
  • Honda-exclusive DAVR (Digital Auto Voltage Regulation)
  • Full frame protection
  • Voltage Selector Switch - 120/240V operation


Advanced technology for consistent power and performance

The EG5000 uses Honda's exclusive DAVR (Digital Automatic Voltage Regulator). The DAVR is designed to hold the voltage stability within a +/- 1% range during operation. This provides more consistent power.

Powerful Honda commercial OHV engine

Legendary Honda commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.

120/240V Selector switch - More usable power, more flexibility

Choose between using both 120 and 240 Volts, or 120 Volts only. This allows for the total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet. This enables you to power units with larger wattage requirements.

Runs 11 hours @ 50% load (6.3 gal.)

Keeps you working, all day long.

3 year commercial/residential warranty

You can rest easy, knowing your generator is covered from top to bottom for 3 full years.

Protected by Honda Oil Alert®

Protects the generator by shutting the engine off when low oil is detected.

Tough one-piece welded frame

Helps protect the generator.

GFCI protection

The EG5000 offers 2 duplex outlets with GFCI protection.

Electronic ignition

USDA-qualified spark arrestor/muffler

Electronic circuit breakers

Protects the generator from being overloaded.

Specifications

  • Specifications
    add remove
    • Engine
      Honda GX390
    • Displacement
      389 cc
    • AC Output
      120/240V 5000W max. (41.2/20.8A) / 4500W rated (37.5/18.6A)
    • Receptacles
      20A 125V GFCI Duplex (2), 30A 125V Locking Plug, 30A 125/250V Locking Plug
    • DC Output
      NA
    • Starting System
      Recoil Only
    • Fuel Tank Capacity
      6.3 Gallons
    • Run Time per Tankful
      7.5 hrs. @ rated, 11.0hrs. @ 1/2 load
    • Dimensions (L x W x H)
      26.8" x 22.8" x 22.6"
    • Noise Level
      73 dB(A) @ rated load; 70 dB(A) @ 50% loadspecLink.Display
    • Dry Weight
      173 lbs.
    • Residential Warranty
      3 Years
    • Commercial Warranty
      3 Years
