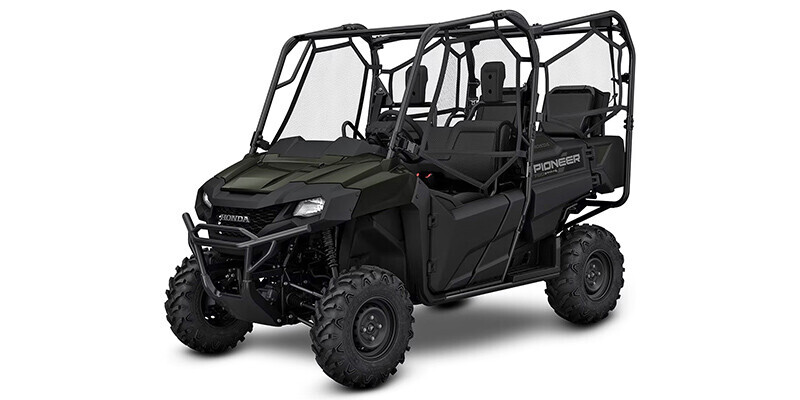

The 2024 Honda Pioneer 700-4 Forest is built for riders who need versatility, durability, and a machine that’s ready for anything the outdoors can throw at it. At its core is a proven 675cc liquid-cooled, fuel-injected engine that delivers smooth, reliable power whether you’re hauling gear, exploring rugged trails, or tackling tough jobs. Its exclusive QuickFlip® seating system lets you transform the rear cargo area into additional seating for up to four passengers, giving you flexibility for both work and play. The Forest edition comes equipped with premium features designed for the outdoors, including a factory-installed Warn® winch, aluminum wheels, and specially styled graphics. Independent front and rear suspension provide a smooth, controlled ride across uneven terrain, while Honda’s Electric Power Steering (EPS) and selectable 2WD/4WD with differential lock ensure confident handling in any condition. From the backwoods to the worksite, the 2024 Pioneer 700-4 Forest combines rugged utility with refined comfort—making it the ultimate side-by-side for those who want reliability, capability, and Honda’s legendary quality in one package. 2024 Honda® Pioneer 700-4 ForestTHE GET ‘ER DONE SxS
The biggest difference between our Honda Pioneer 700 and the Pioneer 700-4? The 700-4 features our exclusive in-bed QuickFlip® seating. It lets you carry two passengers safely in the bed, and when you don’t need the seats they fold flat for a tilt bed that’s super versatile. And for 2024 the Pioneer 700-4 even comes in three great trim levels: our “standard” model (if you can call a SxS with this many features “standard”), the Pioneer 700-4 Deluxe (with Electric Power Steering, paddle shifters, aluminum wheels, bed lights, and a 12-volt accessory outlet) and our Pioneer 700-4 Forest edition (with a pre-installed Warn VRX45 Winch, Electric Power Steering, paddle shifters, aluminum wheels, more under-dash storage, and much more). All three feature tilt beds and the same 675cc engine. Don’t need the extra passenger seating? Then check out our two-person Pioneer 700 lineup.
Features may include:
HANDLINGELECTRIC POWER STEERING (EPS)
Our Honda Electric Power Steering has always been a groundbreaking innovation, especially with its next-generation brushless motor, and return-to-center function. (Available on Pioneer 700-4 Deluxe and Pioneer 700-4 Forest)
ENGINEERINGAT/MT MODE AND PADDLE SHIFTERS
With the Honda Pioneer 700-4 Deluxe and Pioneer 700-4 Forest, you can let the automatic transmission shift for you, or you can take charge and choose which gear you want for yourself via the steering column mounted paddle shifters—you can even shift from auto to manual (AT to MT) on the fly!
PERFORMANCERUGGED 675cc LIQUID-COOLED ENGINE
Power to go further, and to keep on going. That’s what the 675cc four-stroke single delivers. Rubber-mounted for less cabin vibration. Fuel-injected for reliable starts and performance in inclement weather. And proven reliability for hunting down thrill after thrill.
VERSATILITYQUICKFLIP® SEATING
Versatility is the defining feature of the Pioneer 700-4 and Pioneer 700-4 Deluxe, and nothing illustrates that better than our industry-exclusive QuickFlip®?seating system. Switch between 2-person mode with full cargo and tilt bed functionality, to 3-person mode, to 4. Seats lay flat in the bed, and pop up in an instant whenever you need them.
Specifications
-
-
Engine Type:
Single-Cylinder
-
Engine:
Standard
-
Cylinders:
1
-
Engine Stroke:
4-Stroke
-
Cooling:
Liquid
-
Valves:
4
-
Valves Per Cylinder:
4
-
Valve Configuration:
OHV
-
Bore (mm):
102
-
Bore (in):
4.02
-
Stroke (mm):
82.6
-
Stroke (in):
3.25
-
Displacement (cc):
675
-
Displacement (ci):
41.2
-
Starter:
Electric
-
Fuel Type:
Gas
-
Fuel Requirements:
Regular
-
Carburetion:
Standard
-
Fuel Injector:
Yes
-
Fuel Injector Size (mm):
40
-
Carburetor:
No
-
Carburetion Type:
Fuel Injected
-
Parental Controls:
Not Available
-
Snorkel Air Intake:
Not Available
-
Engine Block Heater:
Not Available
-
Other Engine:
Not Available
-
Bore And Stroke:
102.0mm x 82.6mm
-
Compression Ratio:
9.2:1
-
Induction:
Fuel Injection (PGM-FI), 40mm throttle body
-
Valve Train:
OHV; four valves per cylinder
-
-
Transmission:
Automotive-style automatic transmission with hydraulic torque converter; three
forward gears and reverse. Three drive modes include 2WD, 4WD and 4WD with
Differential lock. AT/MT modes with paddle shifting on the deluxe models.
-
Driveline:
Direct front and rear driveshafts
-
-
Front Suspension:
Independent double-wishbone; 7.9-inch travel
-
Rear Suspension:
Independent double-wishbone; 9.1-inch travel
-
Front Brake:
Dual 200mm hydraulic discs
-
Rear Brake:
Single 170mm hydraulic discs
-
Front Tires:
25 x 8-12
-
Rear Tires:
25 x 10-12
-
-
Length:
115.2 inches
-
Width:
59.9 inches
-
Height:
77.9 inches
-
Wheelbase:
76.8 inches
-
Bed Capacity:
1000 pounds
-
Ground Clearance:
10.4 inches
-
Turning Radius:
1499 pounds - Includes all standard equipment, required fluids and full tank of fuel.
-
Curb Weight:
1499 pounds - Includes all standard equipment, required fluids and full tank of fuel.
-
Fuel Capacity:
8.1 gallons, including 1.5-gallon reserve
-
Towing Capacity:
1500 pounds
-
-
Safety:
Recommended for Drivers 16 years of age and older.
-
-
Optional Extended:
Extended coverage available with a HondaCare® Protection Plan
-
-
Transmission:
Standard
-
Transmission Type:
Automatic
-
Number Of Speeds:
3
-
Hi / Low Range:
Yes
-
Primary Drive (Rear Wheel):
Shaft
-
Primary Drive (Front Wheel):
Shaft
-
Reverse:
Yes
-
Adjustable Throttle:
Not Available
-
Other Transmission:
Not Available
-
-
Driveline:
Standard
-
Driveline Type:
Selectable 4X2 / 4X4
-
Number Of Driveline Modes:
3
-
Rear Solid Axle:
No
-
Limited Slip Differential:
Not Available
-
Differential Lock:
Standard
-
Differential Lock Location:
Front / Rear
-
Other Drive Line:
Not Available
-
-
Dimensions:
Standard
-
Length (mm):
2926
-
Width (in):
59.9
-
Width (mm):
1521.5
-
Height (in):
78
-
Height (mm):
1981.2
-
Wheelbase (in):
76.8
-
Wheelbase (mm):
1950.7
-
Turning Radius (ft):
14.8
-
Ground Clearance (in):
10.7
-
Ground Clearance (mm):
271.8
-
Weight:
Standard
-
Towing Capacity (lbs):
1500
-
Towing Capacity (kgs):
680.4
-
Capacities:
Standard
-
Fuel Capacity (gal):
8.1
-
Fuel Capacity (l):
30.7
-
Fuel Capacity Reserve (gal):
1.5
-
Fuel Capacity Reserve (l):
5.7
-
Performance:
Standard
-
Wet Weight (lbs):
1499
-
Wet Weight (kg):
680
-
-
Front Suspension:
Standard
-
Front Suspension Type:
Independent Double Wishbone
-
Front Travel (in):
7.9
-
Front Travel (mm):
200.7
-
Rear Suspension:
Standard
-
Rear Suspension Type:
Independent Double Wishbone
-
Rear Suspension Material:
Steel
-
Rear Travel (in):
9.1
-
Rear Travel (mm):
231.1
-
Number Rear Shock Absorbers:
2
-
Rear Stabilizer Bar:
Yes
-
Air Adjustable:
No
-
Center Suspension:
Not Available
-
Front Adjustable Fork Pre-Load:
No
-
Rear Adjustable Shock / Spring Pre-Load:
Yes
-
Other Suspension:
Not Available
-
-
Wheels:
Standard
-
Wheels Composition:
Aluminum
-
Front Wheel Width (in):
7
-
Rear Wheel Width (in):
8
-
Front Tire Diameter (in):
25
-
Rear Tire Diameter (in):
25
-
Wheel Weights:
Not Available
-
Tires:
Standard
-
Front Tire Width:
8
-
Front Wheel Diameter:
12
-
Rear Tire Width:
10
-
Rear Wheel Diameter:
12
-
Front Tire (Full Spec):
25 x 8-12
-
Rear Tire (Full Spec):
25 x 10-12
-
Tire Chains:
Not Available
-
Spare Tire:
Not Available
-
Other Wheels & Tires:
Not Available
-
-
Brakes:
Standard
-
Front Brake Type:
Dual Hydraulic Disc
-
Front Brake Diameter (in):
7.9
-
Front Brake Diameter (mm):
200
-
Rear Brake Type:
Hydraulic Disc
-
Rear Brake Diameter (in):
6.7
-
Rear Brake Diameter (mm):
170
-
Anti-Lock Brakes:
Not Available
-
Parking Brake:
Standard
-
Engine Braking:
Standard
-
Regenerative Braking:
Not Available
-
Regenerative Deceleration:
Not Available
-
Linked Brake System Front to Rear:
Not Available
-
Other Brakes:
Not Available
